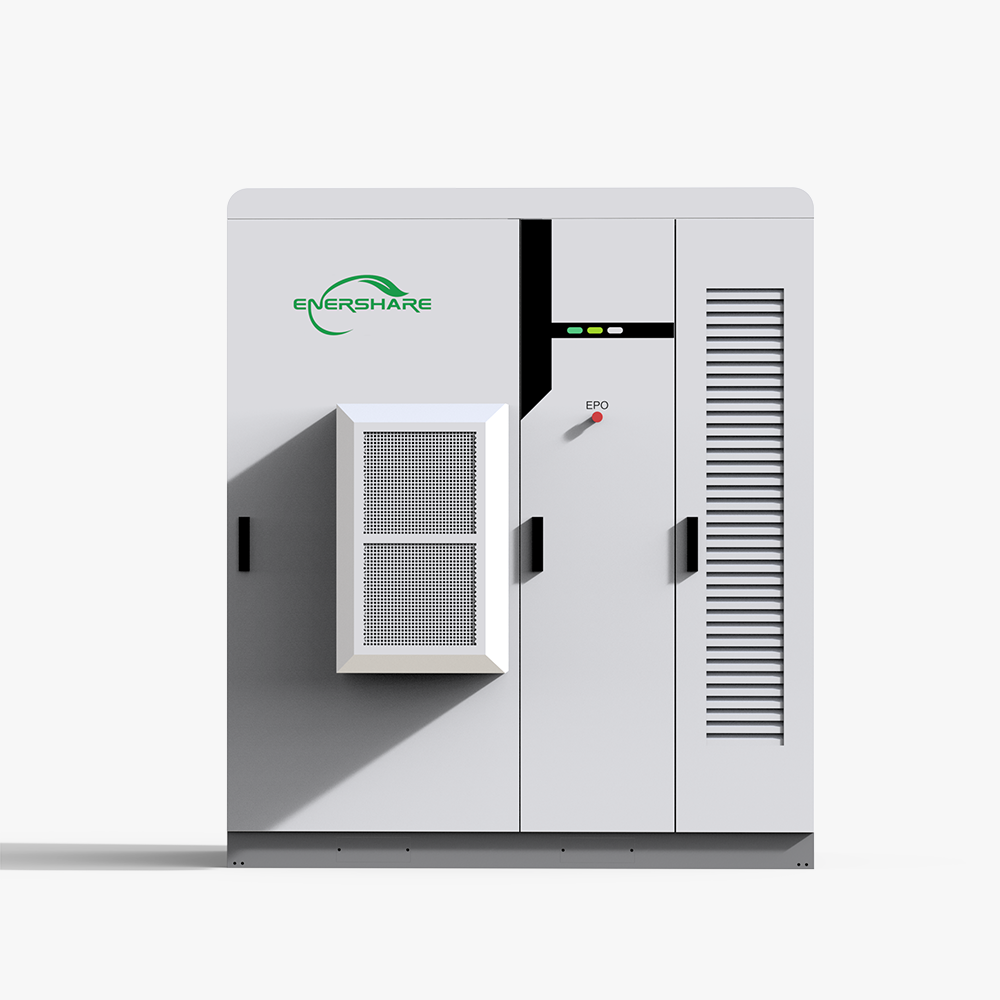

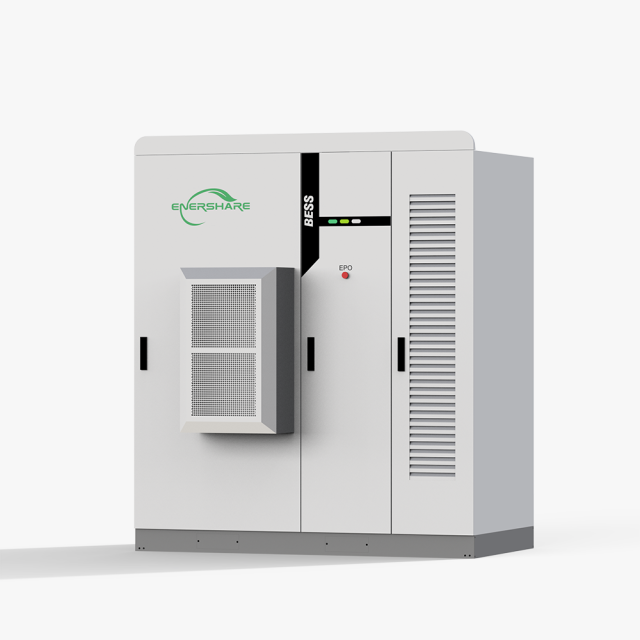

215kWh Outdoor All-in-One ESS Cabinet | LiFePO4 Battery Energy Storage System for Solar, Microgrid & Industrial Applications
Product Description: The 215 kWh LiFePO4 Energy Storage Cabinet (with the 215 kWh Outdoor All-in-One ESS Cabinet as a high-capacity variant) is designed for commercial, industrial (C&I), and microgrid projects, especially tailored for large-scale C&I applications. It integrates BMS (Battery Management System), EMS (Energy Management System), and PCS (Power Conversion System) in a single outdoor cabinet, enabling plug-and-play deployment with cutting-edge technology and robust design. Ideal for diverse markets: Europe (peak
Product Description:
The 215 kWh LiFePO4 Energy Storage Cabinet (with the 215 kWh Outdoor All-in-One ESS Cabinet as a high-capacity variant) is designed for commercial, industrial (C&I), and microgrid projects, especially tailored for large-scale C&I applications. It integrates BMS (Battery Management System), EMS (Energy Management System), and PCS (Power Conversion System) in a single outdoor cabinet, enabling plug-and-play deployment with cutting-edge technology and robust design. Ideal for diverse markets: Europe (peak shaving & subsidy projects), Middle East (diesel replacement & hybrid PV+ESS), and Africa (off-grid farming & rural electrification), it meets the growing demand for reliable renewable energy integration.
-
-
Large-Scale Energy Storage: Supports up to 60 cabinets in parallel, reaching multi-MWh capacity for industrial parks and utility-grade projects.
-
High-Performance LiFePO4 Battery: Ensures long cycle life, safety, and stable high-power output.
-
All-in-One Commercial Cabinet: Integrates BMS, EMS, and PCS with plug & play design for fast deployment.
-
Hybrid Renewable Integration: Compatible with solar PV, wind turbines, and diesel generators.
-
Advanced Safety: 4-layer safety system, air-duct design, and double-bolt insulation guarantee robust protection.
-
Smart Energy Management: Intelligent remote monitoring and <200ms response enhance microgrid stability.
The 215kWh ESS cabinet is widely deployed in Africa and Europe for industrial microgrids, solar-plus-storage systems, and large commercial energy storage projects.
Energy Storage Cabinet Application Value & Scenarios
|
Application Scenario Category
|
Specific Application Scenario
|
Core Application Value
|
|
Commercial & Industrial
|
Commercial & Industrial Peak Shaving
|
Reduce electricity costs and optimize power load profile
|
|
New Energy Supporting
|
PV + ESS Hybrid Power Supply System
|
Store daytime solar energy to meet electricity demand at night and in non-illumination periods
|
|
Special Area Power Supply
|
Microgrid, Off-grid Areas (Islands, Remote Areas, Farms)
|
Provide stable and reliable power to solve the problem of insufficient power grid coverage
|
|
Emergency Support
|
Backup & Emergency Power Supply in Unstable Grid Areas
|
Ensure continuous power supply and avoid production/life losses caused by power outages
|
|
Model |
ES120M0-241K |
ES60M0-241K |
|
DC Side Parameters |
||
| Cell type | LiFePO4 – 314Ah | |
| Module model | 1P20S | |
| Battery capacity range | 241kWh | 241kWh |
|
On-Grid AC Side Parameters |
||
| Grid connection type | 3P4W | |
| Charging/discharging power | 120kW | 60kW |
| Grid voltage range | AC400（±15%）V | |
| Frequency range | 50(±5)Hz | |
| Rated AC output current | 173A | 87A |
| Power factor | 0.8 (Leading) ~ 0.8 (Lagging) | |
| Harmonics | ≤3% (at rated power) | |
|
Off-grid AC Side Parameters |
||
| Load type | 3P4W | |
| Rated output power | 120kW | 60kW |
| Rated output voltage | AC400V±1% | |
| Rated output frequency | 50Hz | |
| Rated current | 173A | 87A |
|
General Parameters |
||
| Dimensions (W*H*D) | 1686mm*2093mm*1392mm | |
| Maximum weight | 2600kg | |
| Protection grade | IP55 (Battery Cabin) IP54 (Electrical Cabin) | |
| Cooling method type | Battery Cabin (air conditioner) & Electrical Cabin (forced air cooling) | |
| Fire fighting system | Combustible gas detection + Water fire protection + [optional] Aerosol fire extinguisher | |
| Anti-corrosion grade | C3 | |
| Relative humidity | 0-95% (non-condensing) | |
| Operating temperature* | -30℃~50℃ | |
| Altitude** |
3000m |
|
| Noise level | ≤65dB (3m) | |
| Communication interface | RS485, Ethernet | |
| Communication protocol | Modbus RTU, Modbus TCP/IP | |
| Product standard warranty | 5-Year Product Warranty;10-Year Performance Guarantee | |
| Product lifetime | 8000 times, 70%EOL, 25℃ | |
|
PV Side Parameters (Optional) |
||
| Maximum PV input power | 30kW/60kW/120kW | |
| Input Voltage to MPPT | 300V-800V (<241kWh) ; 300V~680V (=241kWh) | |
| Number of MPPTs | 1/1/2 | |
| Number of PV inputs | 1/1/2 | |
| Maximum input current | 100A/200A/400A | |
| Certifications |
System: CE(IEC61000,IEC62477),UN3480, CEI021,CEI016, VDE2510, RoHs, IEC62933 Converter: G99, VDE4105, EN50549-1, EN50549-2, AS/NZS 4777, CE(IEC61000, IEC62477) , IEC62109, NC RfG, NRS097,VDE4110, R25&TOR, C10/11,EIFS2018,etc. Cell: IEC62619, UL1973, UL1642, UL9540A PACK: UN38.3 |
|
