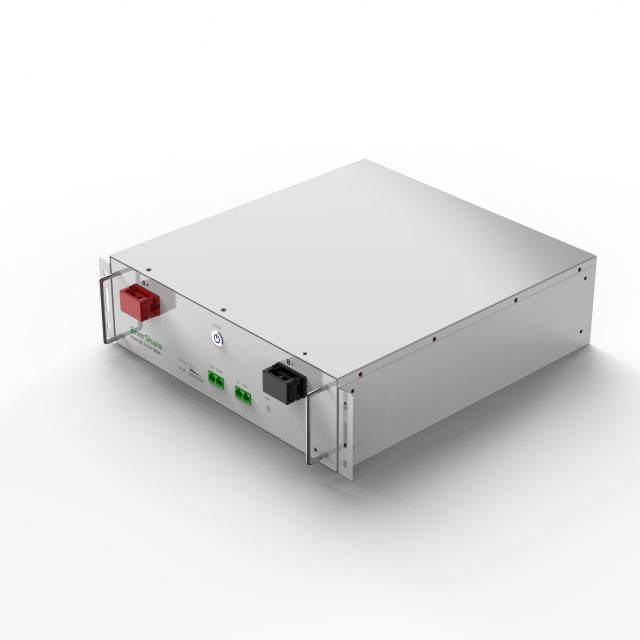

5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 2
5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 3

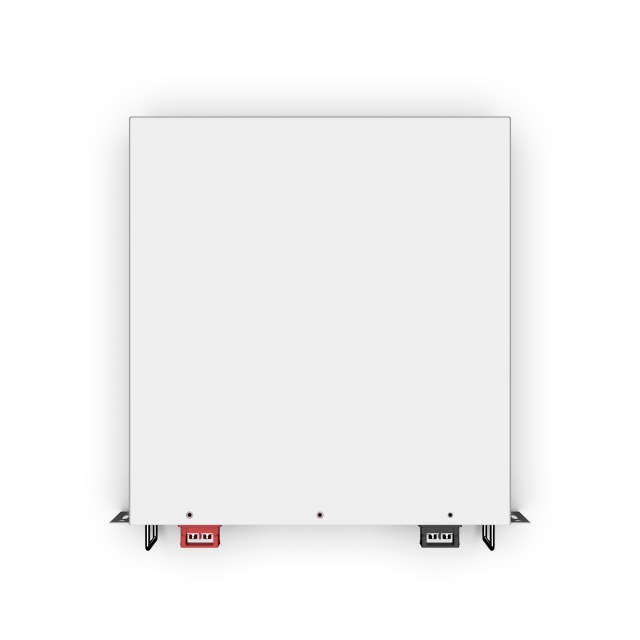

5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 4

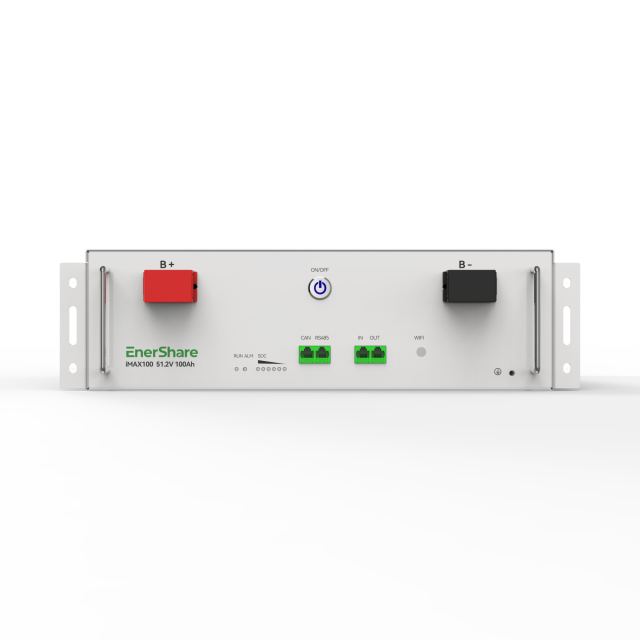

5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 5

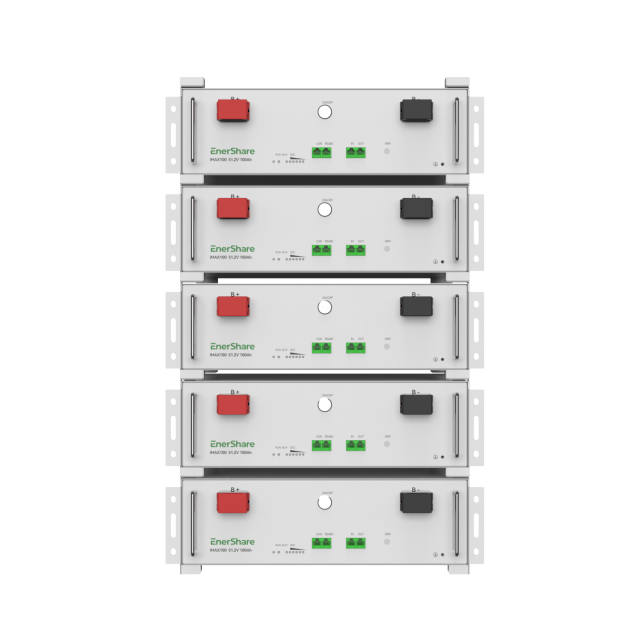

5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 6

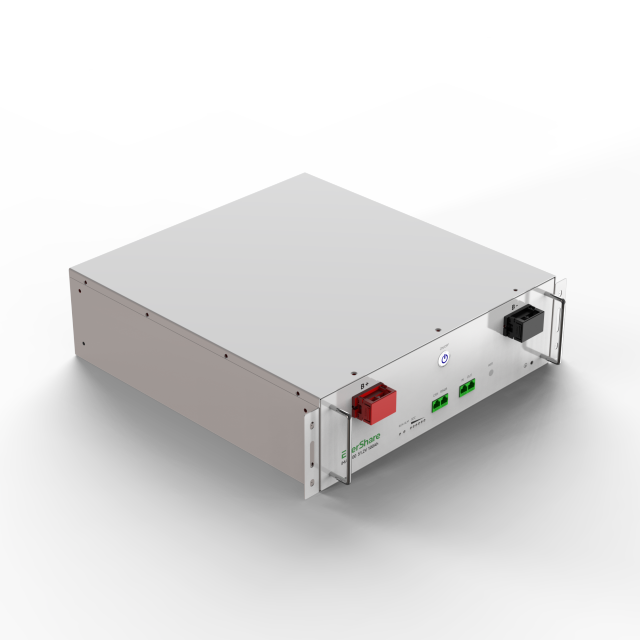

5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 7
5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 8
5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 9
5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 10
5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 11
5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 12
5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing - 13

5.12KWh Lithium Ion Battery Pack – iMAX-100 Fire-Safe Capsule & Active BMS Balancing

The iMAX-100 5.12KWh lithium ion battery pack is designed for home and solar energy storage systems. Equipped with perfluorohexanone passive new capsule fire-extinguishing material and intelligent active BMS balancing strategy, it ensures maximum safety, long lifespan, and efficient performance for residential and commercial energy applications.

Contact Us
The iMAX-100 5.12KWh lithium ion battery pack is designed for home and solar energy storage systems. Equipped with perfluorohexanone passive new capsule fire-extinguishing material and intelligent active BMS balancing strategy, it ensures maximum safety, long lifespan, and efficient performance for residential and commercial energy applications.

The iMAX-100 5.12KWh lithium ion battery pack is a low-voltage energy storage system designed specifically for home solar energy storage and backup power applications. Using high-quality Type-A LiFePO4 cells and equipped with perfluorohexanone passive new capsule fire-extinguishing material, the system ensures extreme safety, long lifespan, high energy density, and efficient performance for residential, commercial, and industrial scenarios.
Featuring a modular design, the iMAX-100 can be expanded up to 50 parallel units, allowing a capacity range from 5.12KWh to 256KWh. It integrates an intelligent active BMS (battery management system) that actively balances cells, optimizes battery performance, and extends cycle life up to 8000 cycles.
This system is compatible with mainstream inverters including BYD, Victron, Solis, GoodWe, Growatt, Solplanet, SOLINTEG, Hoymiles, ensuring seamless integration with existing solar setups.

iMAX-100 Key Features

Flexible Expansion

  • Supports up to 50 battery units in parallel
  • Stackable or rack-mounted
  • Capacity scalable from 5.12KWh to 256KWh

Extreme Safety

  • Equipped with perfluorohexanone passive new capsule fire-extinguishing material
  • High-quality Type-A LiFePO4 cells
  • Low-voltage design reduces risk

Intelligent Management

  • Active BMS balancing strategy extends battery life
  • Real-time monitoring via LED or optional WiFi/Bluetooth
  • Remote operation and OTA upgrades via mobile app

High-Efficiency Balancing

  • Maintains optimal charge and discharge cycles
  • Minimizes energy loss and maximizes system lifespan

Easy Installation

  • Standard 3U chassis design
  • Indoor or outdoor (under eaves) installation

iMAX-100 System Specifications

Parameter Specification
Model iMAX-100
Cell Material LiFePO4 (Type-A)
Rated Capacity 5.12KWh
Rated Voltage / Capacity 51.2V / 100Ah
Continuous Charge/Discharge 50A
Maximum Charge / Discharge 100A
Peak Discharge 150A, 15s @25℃
Depth of Discharge 100%
Voltage Range 44–58.4VDC
Cycle Life 8000 cycles at 0.2C, 100%DOD @25℃
Installation Indoor / Outdoor under eaves
Communication CAN/RS485; WiFi/Bluetooth optional
Cooling Natural Cooling
Max Parallel Units 50P
Fire Protection Perfluorohexanone capsule
Compatible Inverters BYD, Victron, Solis, GoodWe, Growatt, Solplanet, SOLINTEG, Hoymiles
Weight 45kg
Dimensions 440 × 133 × 470mm
IP Rating IP21
